A bevel gearbox is a type of gear system that allows for the transmission of power between intersecting shafts, typically at a right angle. These gearboxes use bevel gears, which have conically shaped teeth, to change the direction of the drive in mechanical systems.
When it comes to mounting on valves, bevel gearboxes are specifically designed to facilitate the manual or motorized operation of linear valves, such as gate, globe, and sluice/slide gate valves. These gearboxes are mounted on the valve stem and help in converting the rotational motion from the handwheel or motor into the linear motion needed to open or close the valve. They are engineered to handle the torque and thrust requirements of the valve operation, ensuring smooth and efficient performance.

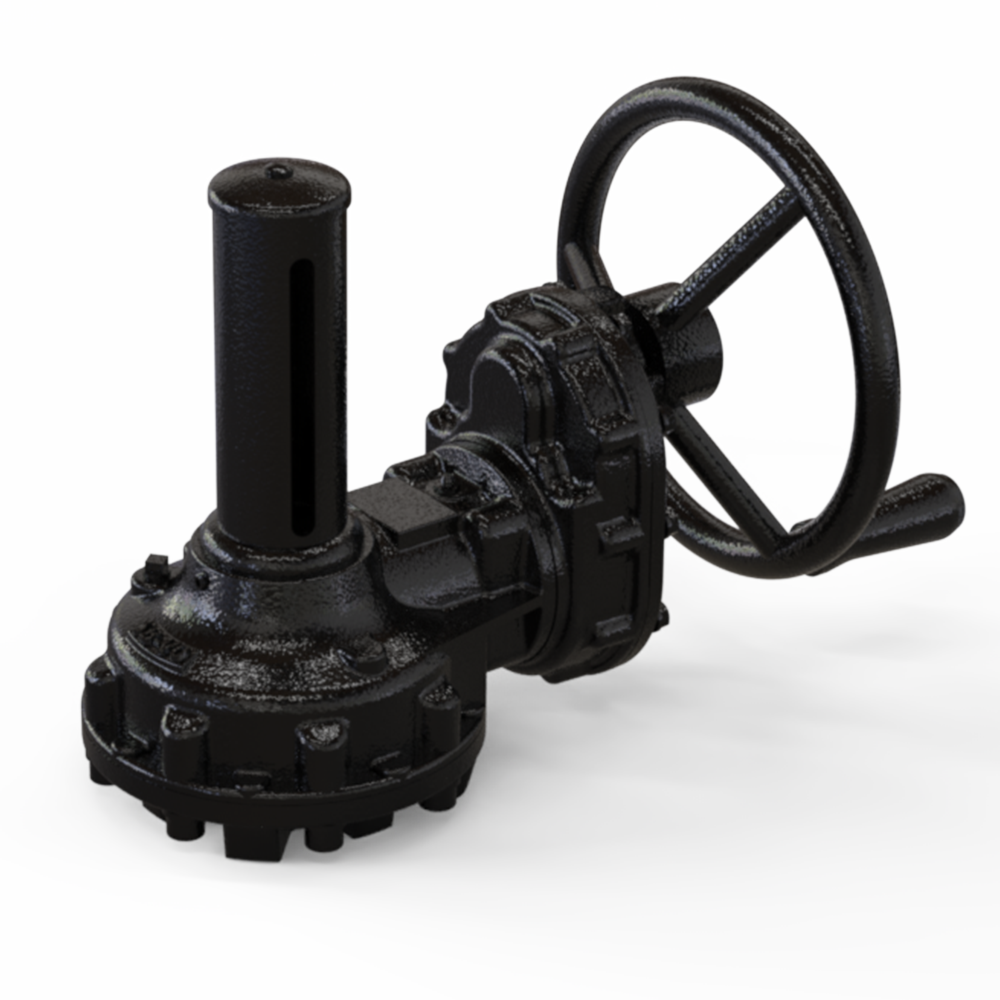

• The SB-V series is suitable for use with Globe, Sluice and Knife Gate type valves and any other type requiring linear motion for thrust and torque applications
• Unique Top Entry replaceable Stem Nut
• High Tensile Aluminium bronze material providing corrosion and abrasion resistance
• Castings are Ductile Iron, class 65-45-12 providing high strength and impact resistance
• Heavy Duty roller bearings supporting both radial and axial thrust loads
• Gears are machine cut, heat treated and ground for optimum operation
• The unit is completely O-Ring sealed suitable for temporary sub-mersion to meet IP68 Class
• The base and end cap is sealed by a non-asbestos gasket to pre-vent any leakage and is waterproof.
• Each unit has an Ale mite Grease type fitting and a grease plug for adding lubricant.
• The SB-V series of Bevel Gear ranges up to 42,000 Nm of Torque and Thrust capacities up to 5,450KN, these models are available upon request.
• Many options are available, such as hand wheels, chain wheels, stem covers, position dial indicators, vertical input, Key Cap
